RACE
Specifications and prices

(as reviewed in FT 2016)

- with water bottle battery






















GOAT Race Ultegra (inc water bottle battery) :- £4699 as in picture above (without pedals)
Upgrades Available

A £100 deposit will secure the order

Click here to make a secure payment of the deposit by Paypal...


Specifications.
Electric Drive system - Vivax Assist Hidden Power
Frame - Magnesium Alloy.
Sizes - 50, 53, 56, 63 cm
Forks - Carbon
Brakes - Shimano Ultegra
Gears - Shimano Ultegra
Rims - Basalt
Spokes - Aero
Tyres - Schwalbe
Stem - Aluminuim
Handlebars - Alloy
Seat post - Aluminium
Weight - 9.3 kg (without Pedals)





- with under saddle battery

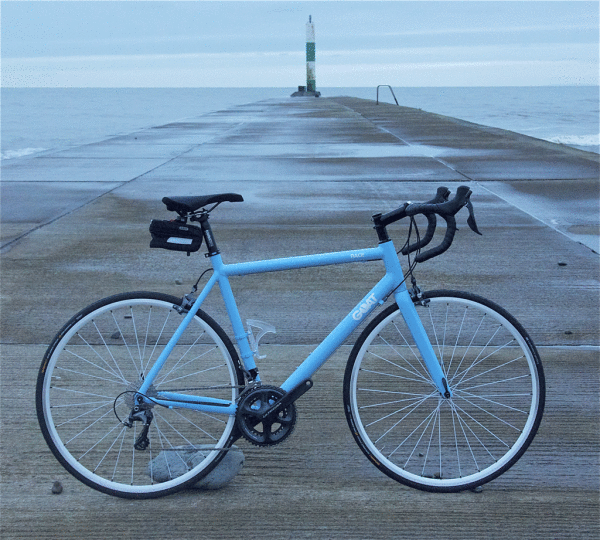

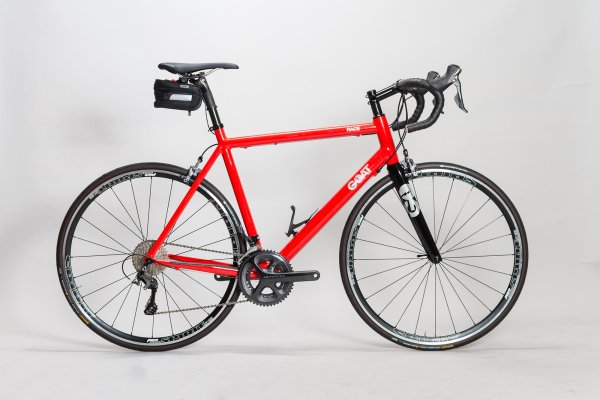

Race with Saddle Bag Battery





























GOAT Race Ultegra (inc under saddle battery) :- £4299/b] as above (without pedals
Upgrades available

A £100 deposit will secure the order

Click here to make a secure payment of the deposit by Paypal...


Specifications.
Electric Drive system - Vivax Assist with soft case battery
Frame - Magnesium Alloy.
Sizes - 50, 53, 56, 63 cm
Forks - Carbon
Brakes - Shimano Ultegra
Gears - Shimano Ultegra
Rims - Basalt
Spokes - Aero
Tyres - Schwalbe
Stem - Alloy
Handlebars - Alloy
Seat post - Aluminium
Weight - 9.3 kg (without Pedals)



[b]Frame
[u][/u]

Goat Race Frame -
With Shimano 105 Crank £3099
With Shimano Ultegra Crank £3175
With Shimano Dura Ace Crank £3399

Frame - Magnesium Alloy.
Sizes - 50, 53, 56, 63 cm
Crank - Dura Ace
Overall weight including crank and motor, battery kit - From 3.65kg

Frame net weight - 1150 grams


jet-black-frame-with-crank-

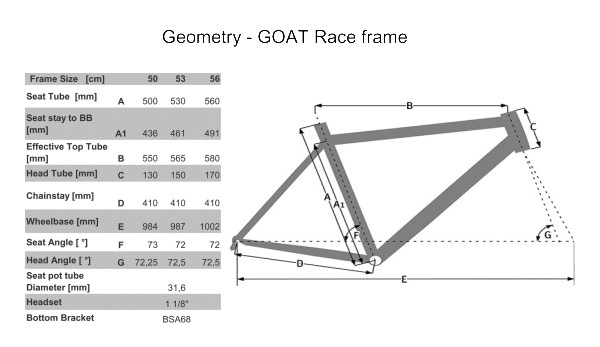

GOAT Race Frame Geometry





























Custom Colour RAL CHART
Choose your colour. (Included in price).

RAL Classic Colour Chart
To view the chart in close-up, click this link - electricmountainbikes.com//RAL-colour-chart.pdf











































Jet Black Gloss RACE bike
Jet Black Gloss RACE bike






















with decals in Anthracite
and built with the Water Bottle Battery option.



Sky Blue RACE Bike
Sky Blue RACE Bike






















with decals in Black
and built with the Saddle Bag Battery option.




Below are some examples of bikes built to customer's specifications -
[/b]

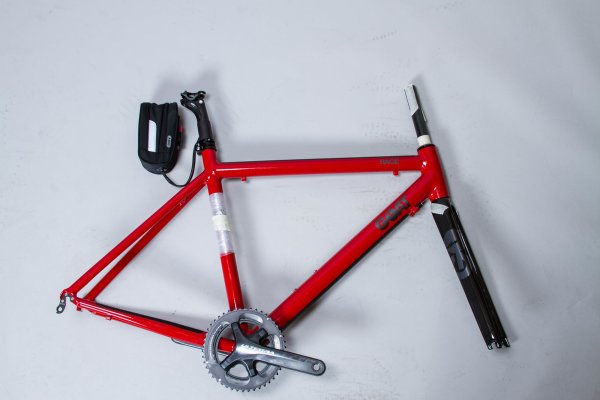

[b]GOAT Race Frame Set in Signal Red/Ral Colour 3001. With lacquered Carbon Forks. Granite Metallic Decals on frame and forks.

[/b]

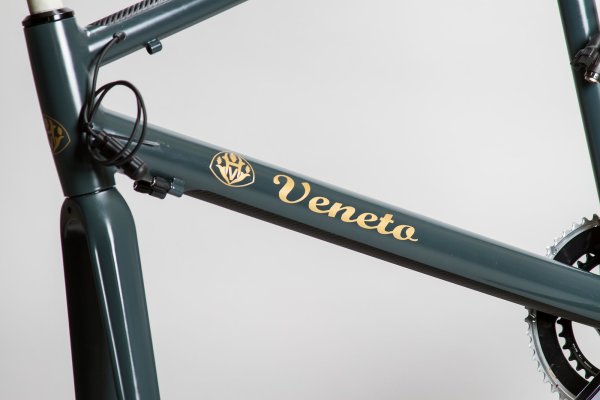

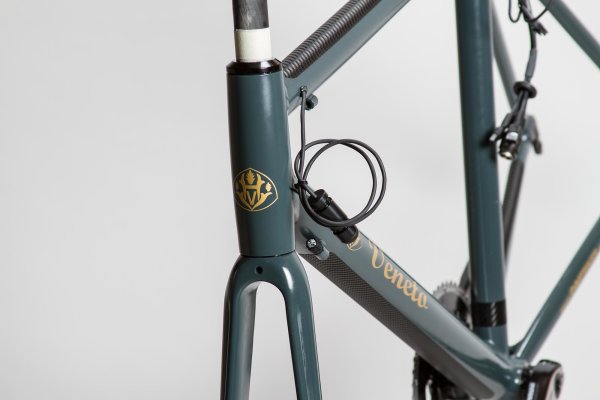

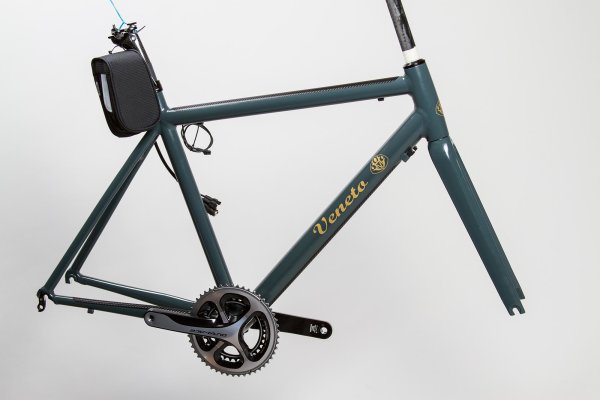

[b]GOAT Race Frame Set in Granite Grey/Ral Colour 7026 with customised decals in Gold Metallic, with corporate hotel branding.

[/b]

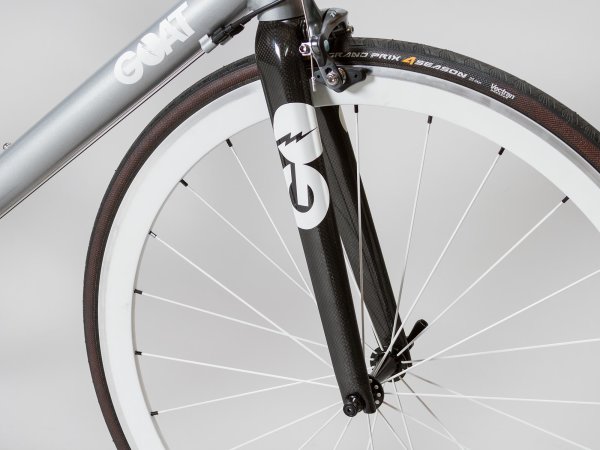

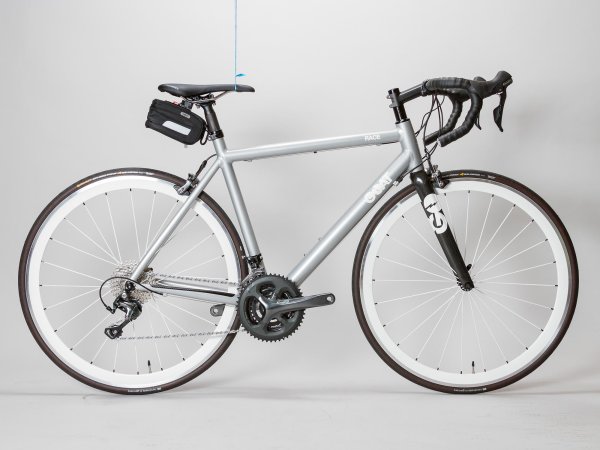

[b]GOAT Race Bike in Metallic Silver. Lacquered Carbon Forks. White Decals on frame and forks. Customised with Triple Front Chain Ring.

[/b]

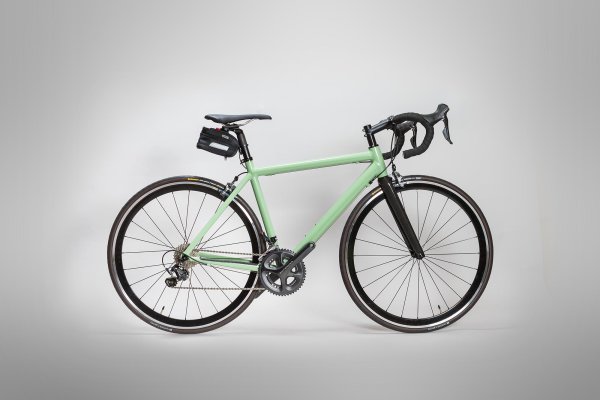

[b]GOAT Race complete bike in Pale Green/RAL 6021.




























GOAT Race complete bike in Pure Red/RAL 3028.
